View chumh3gp datasheet:

chumh3gpchumh3gp

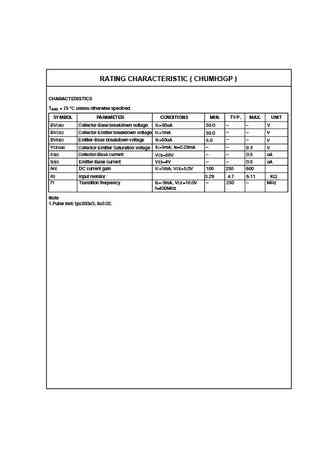

CHENMKO ENTERPRISE CO.,LTDCHUMH3GPSURFACE MOUNT NPN Digital Silicon TransistorVOLTAGE 50 Volts CURRENT 100 mAmpereAPPLICATION* Switching circuit, Inverter, Interface circuit, Driver circuit.FEATURE* Small surface mounting type. (SC-88/SOT-363)SC-88/SOT-363* High current gain. * Suitable for high packing density.* Low colloector-emitter saturation.* High saturation current capability. (4) (3)* Two CHDTC143T chips in one package.(5) 0.65* Built in bias resistor(R1=4.7k, Typ. ) 1.30.1 2.00.2(2)0.65(6)(1)0.10.20.051.250.10.150.05 0.90.10.70.10~0.10.1 Min.6 42.30.15CIRCUITR1R11 3 Dimensions in millimeters SC-88/SOT-363LIMITING VALUESIn accordance with the Absolute Maximum Rating System (IEC 60134).VALUESYMBOL PARAMETER CONDITIONS UNITVCBO Collector-Base voltage 50VVCEO Collector-Emitter v
