View cmpta92e datasheet:

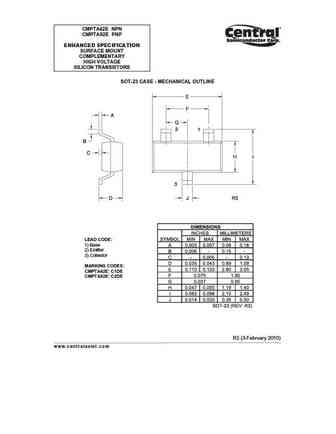

CMPTA42E NPN CMPTA92E PNPENHANCED SPECIFICATIONwww.centralsemi.comSURFACE MOUNTDESCRIPTION:COMPLEMENTARY The CENTRAL SEMICONDUCTOR CMPTA42E and HIGH VOLTAGECMPTA92E are Enhanced versions of the CMPTA42 SILICON TRANSISTORSand CMPTA92 complementary surface mount high voltage transistors.MARKING CODES: CMPTA42E: C1DECMPTA92E: C2DEFEATURED ENHANCED SPECIFICATIONS: BVCBO from 300V min to 350V min.SOT-23 CASE BVCEO from 300V min to 350V min. hFE from 25 min to 50 min.MAXIMUM RATINGS: (TA=25C) SYMBOL UNITS Collector-Base Voltage VCBO 350 V Collector-Emitter Voltage VCEO 350 VEmitter-Base Voltage VEBO 6.0 VContinuous Collector Current IC 500 mAPower Dissipation PD 350 mWOperating and Storage Junction Temperature TJ, Tstg -65 to +150 CThermal Resistance JA 357 C/WELECTRICAL CHARACTERISTICS: (TA=25C unless otherwis
