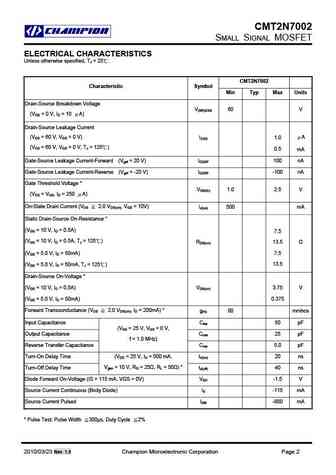

View cmt2n7002 cmt2n7002wg datasheet:
CMT2N7002 SMALL SIGNAL MOSFET GENERAL DESCRIPTION FEATURES This N-Channel enhancement mode field effect transistor is High Density Cell Design for Low RDS(ON) produced using high cell density, DMOS technology. These Voltage Controlled Small Signal Switch products have been designed to minimize on-state resistance Rugged and Reliable while provide rugged, reliable, and fast switching performance. High Saturation Current Capability It can be used in most applications requiring up to 115mA DC and can deliver pulsed currents up to 800mA. This product is particularly suited for low voltage, low current applications such as small servo motor control, power MOSFET gate drivers, and other switching applications. PIN CONFIGURATION SYMBOL SOT-23, SOT-323 SOT-363 DTop View Top View D2 G1 S1 3GS1 2 S2 G2 D1 N-Channel MOSFET ORDERING INFORMAT
