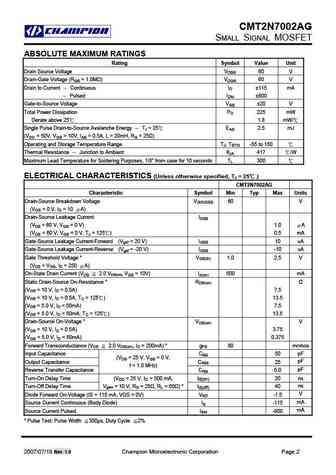

View cmt2n7002ag datasheet:
CMT2N7002AG SMALL SIGNAL MOSFET GENERAL DESCRIPTION FEATURES This N-Channel enhancement mode field effect transistor High Density Cell Design for Low RDS(ON) is produced using high cell density, DMOS technology. Voltage Controlled Small Signal Switch These products have been designed to minimize Rugged and Reliable on-state resistance while provide rugged, reliable, and High Saturation Current Capability fast switching performance. It can be used in most Built-in G-S Protection Diode applications requiring up to 115mA DC and can deliver pulsed currents up to 800mA. This product is particularly suited for low voltage, low current applications such as small servo motor control, power MOSFET gate drivers, and other switching applications. PIN CONFIGURATION SYMBOL SOT-23 Top View 31 2N-Channel MOSFET ORDERING INFORMATION Part Number Packag
