View cs20n60f cs20n60p datasheet:

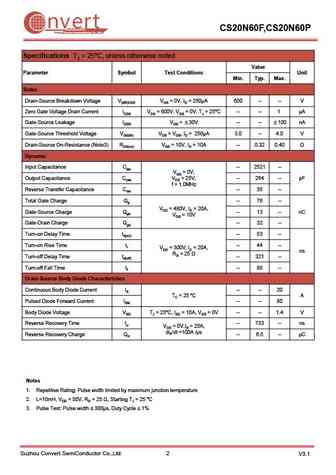

cs20n60f_cs20n60pcs20n60f_cs20n60p

nvertCS20N60F,CS20N60PSuzhou Convert Semiconductor Co ., Ltd.600V N-Channel MOSFETFEATURES Fast switching 100% avalanche tested Improved dv/dt capabilityAPPLICATIONS Switch Mode Power Supply (SMPS) Uninterruptible Power Supply (UPS) Power Factor Correction (PFC)Device Marking and Package InformationDevice Package MarkingCS20N60F TO-220F CS20N60FCS20N60P TO-220 CS20N60PAbsolute Maximum Ratings TC = 25 unless otherwise notedC,ValueParameter Symbol UnitTO-220F TO-220Drain-Source Voltage (VGS = 0V) VDSS 600 VContinuous Drain Current ID 20 APulsed Drain Current (note1) IDM 80 AGate-Source Voltage VGSS 30 VSingle Pulse Avalanche Energy (note2) EAS 566 mJAvalanche Current (note1) IAS 11 ARepetitive Avalanche Energy (note1) EAR 339 mJPower Dissipation (TC = 25 PD 120 140 WC)Operating Junction and Storage Tempe
