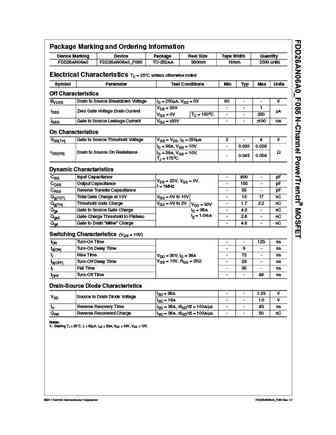

View fdd26an06 f085 datasheet:
Aug 2011FDD26AN06A0_F085N-Channel PowerTrench MOSFET60V, 36A, 26mApplicationsFeatures Motor / Body Load Control rDS(ON) = 20m (Typ.), VGS = 10V, ID = 36A ABS Systems Qg(tot) = 13nC (Typ.), VGS = 10V Powertrain Management Low Miller Charge Injection Systems Low QRR Body Diode DC-DC converters and Off-line UPS UIS Capability (Single Pulse and Repetitive Pulse) Distributed Power Architectures and VRMs Qualified to AEC Q101 Primary Switch for 12V and 24V systems RoHS CompliantDRAIN D(FLANGE)GATEGSOURCESTO-252AAFDD SERIESMOSFET Maximum Ratings TC = 25C unless otherwise noted Symbol Parameter Ratings UnitsVDSS Drain to Source Voltage 60 VVGS Gate to Source Voltage 20 VDrain Current36 AContinuous (TC = 25oC, VGS = 10V) ID Continuous (TC = 100oC, VGS = 10V) 25 ACont
