fdd8444fdd8444

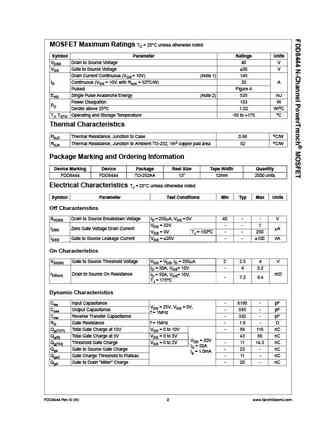

June 2007FDD8444tmN-Channel PowerTrench MOSFET 40V, 50A, 5.2m ApplicationsFeatures Typ rDS(on) = 4m at VGS = 10V, ID = 50A Automotive Engine Control Typ Qg(10) = 89nC at VGS = 10V Powertrain Management Low Miller Charge Solenoid and Motor Drivers Low Qrr Body Diode Electronic Transmission UIS Capability (Single Pulse/ Repetitive Pulse) Distributed Power Architecture and VRMs Qualified to AEC Q101 Primary Switch for 12V Systems RoHS Compliant 2006 Fairchild Semiconductor Corporation 1 www.fairchildsemi.comFDD8444 Rev B (W)FDD8444 N-Channel PowerTrench MOSFETNEERFIDMAPLEELMETATIONMOSFET Maximum Ratings TC = 25C unless otherwise noted Symbol Parameter Ratings UnitsVDSS Drain to Source Voltage 40 VVGS Gate to Source Voltage 20 VDrain Current Continuous (VGS = 10V) (Note 1) 145ID
