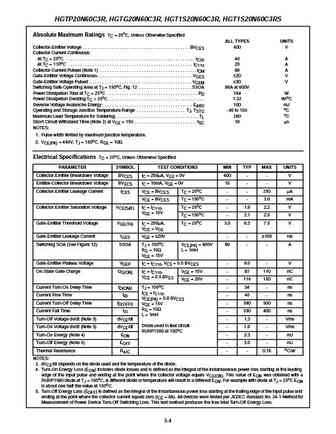

View hgtg20n60c3r datasheet:
HGTG20N60C3R, HGTP20N60C3R,S E M I C O N D U C T O RHGT1S20N60C3R, HGT1S20N60C3RS40A, 600V, Rugged UFS Series N-Channel IGBTsJanuary 1997Features Description 40A, 600V TJ = 25oC This family of IGBTs was designed for optimum performancein the demanding world of motor control operation as well as 600V Switching SOA Capabilityother high voltage switching applications. These devicesdemonstrate RUGGED performance capability when Typical Fall Time at TJ = 150oC . . . . . . . . . . . . . 330nssubjected to harsh SHORT CIRCUIT WITHSTAND TIME Short Circuit Rating at TJ = 150oC . . . . . . . . . . . . . 10s(SCWT) conditions. The parts have ULTRAFAST (UFS)switching speed while the on-state conduction losses have Low Conduction Lossbeen kept at a low level.The electrical specifications include typical Turn-On andOrdering InformationTurn-Off
