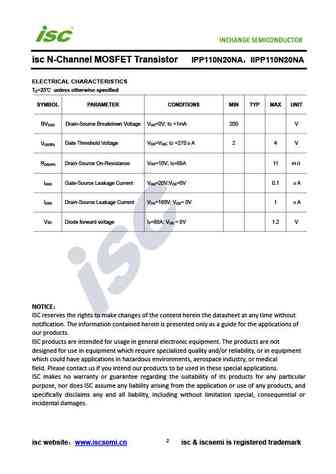

isc N-Channel MOSFET Transistor IPP110N20NAIIPP110N20NAFEATURESStatic drain-source on-resistance:RDS(on) 11mEnhancement modeFast Switching Speed100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRITION Ideal for high-frequency switching and synchronous rectificationABSOLUTE MAXIMUM RATINGS(T =25)aSYMBOL PARAMETER VALUE UNITV Drain-Source Voltage 200 VDSSV Gate-Source Voltage 20 VGSI Drain Current-Continuous 88 ADI Drain Current-Single Pulsed 352 ADMP Total Dissipation @T =25 300 WD CT Max. Operating Junction Temperature 175 jT Storage Temperature -55~175 stgTHERMAL CHARACTERISTICSSYMBOL PARAMETER MAX UNITChannel-to-case thermal resistance/WRth(ch-c) 0.5Channel-to-ambient thermal resistance/WRth(ch-a) 621isc we
