View irf3205a irf3205h datasheet:

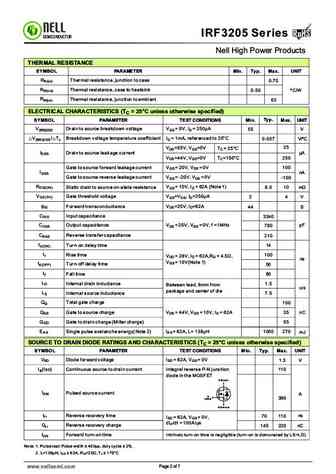

irf3205a_irf3205hirf3205a_irf3205h

RoHS IRF3205 Series RoHS SEMICONDUCTORNell High Power ProductsN-Channel Power MOSFET(110A, 55Volts)DESCRIPTION The Nell IRF3205 is a three-terminal silicon device with current conduction capabilityDDof 110A, fast switching speed, low on-stateresistance, breakdown voltage rating of 55V,and max. threshold voltage of 4 volts. They are designed as an extremely efficientGand reliable device for use in a wide variety of DSapplications. These transistors can be operatedGDSdirectly from integrated circuits. FEATURESTO-220AB TO-263(D2PAK) (IRF3205A) (IRF3205H) RDS(ON) = 0.010 @ VGS = 10V Ultra low gate charge(150nC max.)Low reverse transfer capacitance(CRSS = 210pF typical)Fast switching capability100% avalanche energy specifiedD (Drain)Improved dv/dt capability175C operation temperaturePRODUCT SUMMARYID (A)110G
