View irf6216pbf datasheet:

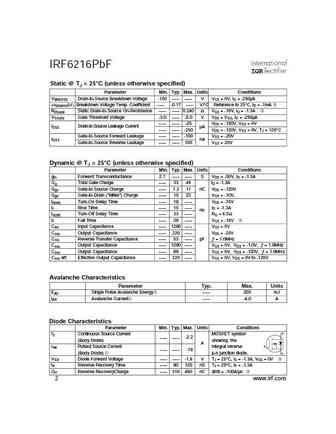

SMPS MOSFETPD - 95293IRF6216PbFHEXFET Power MOSFETApplicationsVDSS RDS(on) max IDl Reset Switch for Active Clamp ResetDC-DC converters -150V 0.240W@VGS =-10V -2.2Al Lead-FreeBenefitsl Low Gate to Drain Charge to Reduce A1 8S DSwitching Losses2 7S Dl Fully Characterized Capacitance Including3Effective COSS to Simplify Design (See 6S DApp. Note AN1001)4 5G Dl Fully Characterized Avalanche Voltageand CurrentSO-8Top ViewAbsolute Maximum RatingsParameter Max. UnitsID @ TA = 25C Continuous Drain Current, VGS @ 10V -2.2ID @ TA = 70C Continuous Drain Current, VGS @ 10V -1.9 AIDM Pulsed Drain Current -19PD @TA = 25C Power Dissipation 2.5 WLinear Derating Factor 0.02 W/CVGS Gate-to-Source Voltage 20 Vdv/dt Peak Diode Recovery dv/dt 7.8 V/nsTJ Operating Junction and -55 to + 150TSTG Storage Temperature Ran
