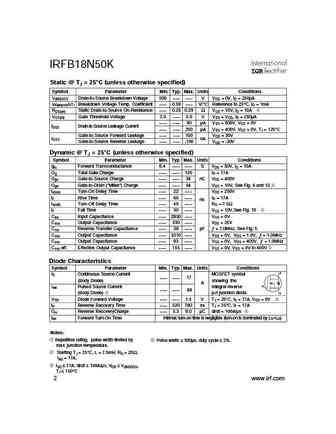

View irfb18n50k datasheet:

irfb18n50kirfb18n50k

PD - 93926BIRFB18N50KSMPS MOSFETHEXFET Power MOSFETApplicationsVDSS RDS(on) typ. ID Switch Mode Power Supply (SMPS) Uninterruptible Power Supply500V 0.26 17A High Speed Power Switching Hard Switched and High FrequencyCircuitsBenefits Low Gate Charge Qg results in Simple Drive Requirement Improved Gate, Avalanche and Dynamicdv/dt Ruggedness Fully Characterized Capacitance and Avalanche VoltageTO-220ABand Current Low RDS(on)Absolute Maximum RatingsParameter Max. UnitsID @ TC = 25C Continuous Drain Current, VGS @ 10V 17ID @ TC = 100C Continuous Drain Current, VGS @ 10V 11 AIDM Pulsed Drain Current 68PD @TC = 25C Power Dissipation 220 WLinear Derating Factor 1.8 W/CVGS Gate-to-Source Voltage 30 Vdv/dt Peak Diode Recovery dv/dt 11 V/nsTJ Operating Junction and -55 to + 150TSTG Storage Temperature RangeSoldering T
