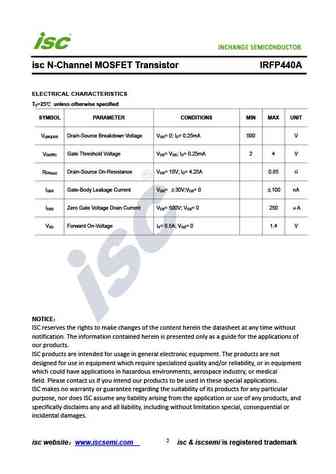

View irfp440a datasheet:

irfp440airfp440a

isc N-Channel MOSFET Transistor IRFP440AFEATURESDrain Current I = 8.5A@ T =25D CDrain Source Voltage-: V = 500V(Min)DSSStatic Drain-Source On-Resistance: R = 0.85(Max)DS(on)Fast Switching100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRIPTIONDesigned for use in switch mode power supplies and generalpurpose applications.ABSOLUTE MAXIMUM RATINGS(T =25)aSYMBOL PARAMETER VALUE UNITV Drain-Source Voltage 500 VDSSV Gate-Source Voltage-Continuous 30 VGSI Drain Current-Continuous 8.5 ADI Drain Current-Single Pluse 34 ADMP Total Dissipation @T =25 162 WD CMax. Operating Junction Temperature -55~150 TJT Storage Temperature -55~150 stgTHERMAL CHARACTERISTICSSYMBOL PARAMETER MAX UNIT/WR Thermal Resistance, Junction to Case 0.8
