View irfz44cn datasheet:

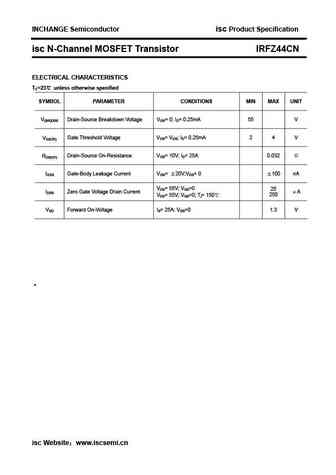

INCHANGE Semiconductor isc Product Specification isc N-Channel MOSFET Transistor IRFZ44CN FEATURES Drain Current ID=49A@ TC=25 Drain Source Voltage- : VDSS= 55V(Min) Static Drain-Source On-Resistance : RDS(on) = 0.032(Max) Fast Switching DESCRIPTION Designed for low voltage, high speed switching applications in power supplies, converters and power motor controls, these devices are particularly well suited for bridge circuits where diode speed and commutating safe operating areas are critical and offer additional safety margin against unexpected voltage transients. ABSOLUTE MAXIMUM RATINGS(Ta=25) SYMBOL PARAMETER VALUE UNITVDSS Drain-Source Voltage 55 V VGS Gate-Source Voltage-Continuous 20 VID Drain Current-Continuous 49 A IDM Drain Current-Single Pluse (tp10s) 160 APD Total Dissipation @TC=25 94 WMax. Oper
