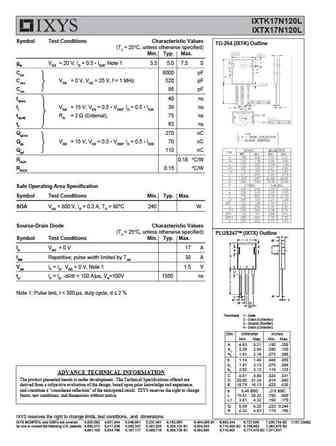

View ixtk17n120l ixtx17n120l datasheet:

Advance Technical InformationIXTK17N120L VDSS = 1200 VLinear Power MOSFETIXTX17N120L ID25 = 17 AWith Extended FBSOA RDS(on) 0.99 N-Channel Enhancement ModeTO-264 (IXTK)Symbol Test Conditions Maximum RatingsVDSS TJ = 25C to 150C 1200 VVDGR TJ = 25C to 150C; RGS = 1 M 1200 VGDVGS Continuous 30 VS(TAB)VGSM Transient 40 VID25 TC = 25C 17 APLUS247 (IXTX)IDM TC = 25C, pulse width limited by TJM 30 AIAR TC = 25C 10 AEAR TC = 25C 60 mJEAS 1.5 JPD TC = 25C 700 WTABTJ -55 to +150 CTJM 150 CG = Gate D = DrainTstg -55 to +150 CS = Source TAB = DrainTL 1.6 mm (0.063 in) from case for 10 s 300 CTSOLD Plastic body for 10 s 260 CFeaturesMd Mounting torque (TO-264) 1.13/10 Nm/lb.in.Fc Mounting force (PLUS247TM) 20...120/4.5...27 N/lb. Designed for linear operat
