View j111 j112 j113 cnv datasheet:

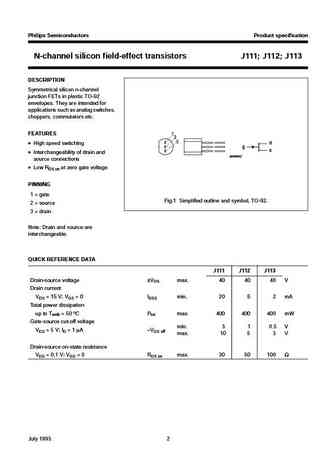

DISCRETE SEMICONDUCTORSDATA SHEETJ111; J112; J113N-channel silicon field-effecttransistorsJuly 1993Product specificationFile under Discrete Semiconductors, SC07Philips Semiconductors Product specificationN-channel silicon field-effect transistors J111; J112; J113DESCRIPTIONSymmetrical silicon n-channeljunction FETs in plastic TO-92envelopes. They are intended forapplications such as analog switches,choppers, commutators etc.FEATURES 1handbook, halfpage23d High speed switchinggs Interchangeability of drain andMAM042source connections Low RDS on at zero gate voltagePINNING1 = gateFig.1 Simplified outline and symbol, TO-92.2 = source3 = drainNote: Drain and source areinterchangeable.QUICK REFERENCE DATAJ111 J112 J113Drain-source voltage VDS max. 40 40 40 VDrain currentVDS = 15 V; VGS =0 IDSS min. 20
