View j308-j309-j310 datasheet:

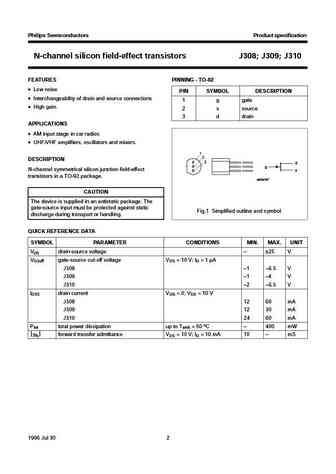

DISCRETE SEMICONDUCTORSDATA SHEETJ308; J309; J310N-channel silicon field-effecttransistorsProduct specification 1996 Jul 30Supersedes data of April 1995File under Discrete Semiconductors, SC07Philips Semiconductors Product specificationN-channel silicon field-effect transistors J308; J309; J310FEATURES PINNING - TO-92 Low noisePIN SYMBOL DESCRIPTION Interchangeability of drain and source connections1 g gate High gain.2 s source3 d drainAPPLICATIONS AM input stage in car radios UHF/VHF amplifiers, oscillators and mixers.1handbook, halfpage2DESCRIPTION3dgN-channel symmetrical silicon junction field-effectstransistors in a TO-92 package.MAM197CAUTIONThe device is supplied in an antistatic package. Thegate-source input must be protected against staticFig.1 Simplified outline and symbol.discharge during
