View ksh13007 datasheet:

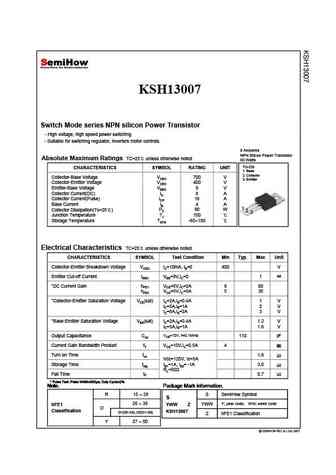

KSH13007KSH13007 SEMIHOW REV.A1,Oct 2007KSH130007KSH13007Switch Mode series NPN silicon Power TransistorSwitch Mode series NPN silicon Power Transistor- High voltage, high speed power switching- Suitable for switching regulator, inverters motor controls8 AmperesNPN Silicon Power Transistor Absolute Maximum Ratings TC=25 unless otherwise noted80 WattsTO-220CHARACTERISTICS SYMBOL RATING UNIT1. Base2. CollectorCollector-Base Voltage VCBO 700 V3. EmitterCollector Emitter Voltage V 400 VCollector-Emitter Voltage VCEO 400 VEmitter-Base Voltage VEBO 9 VCollector Current(DC) IC 8 ACollector Current(Pulse) ICP 16 ABase Current IB 4 A1Collector Dissipation(Tc=25) PC 80 W23Junction Temperature TJ 150 Storage Temperature TSTG -65~150 Electrical Characteristics TC=25 unless otherwise notedCHARACTERISTICS SYMBOL Te
