View mje13002g datasheet:

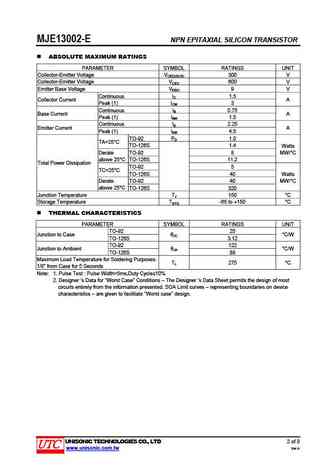

UNISONIC TECHNOLOGIES CO., LTD MJE13002-E NPN EPITAXIAL SILICON TRANSISTOR HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR DESCRIPTION The UTC MJE13002-E designed for use in highvolatge, high speed,power switching in inductive circuit, It is particularly suited for 115 and 220V switchmode applications such as switching regulators,inverters, DC-DC converter, Motor control,Solenoid/Relay drivers and deflection circuits. FEATURES *Collector-Emitter Sustaining Voltage: VCEO (sus)=300V. *Collector-Emitter Saturation Voltage: VCE(sat)=1.0V(Max.) @IC=1.0A, IB =0.25A *Switch Time- tf =0.7s(Max.) @Ic=1.0A. ORDERING INFORMATION Ordering Number Pin Assignment Package Packing Lead Free Halogen Free 1 2 3 MJE13002L-E-x-T6S-K MJE13002G-E-x-T6S-K TO-126S B C E BulkMJE13002L-E-x-T92-B MJE13002G-E-x-T92-B TO-92 B C E Tape BoxMJE13002L
