View mje13003 datasheet:

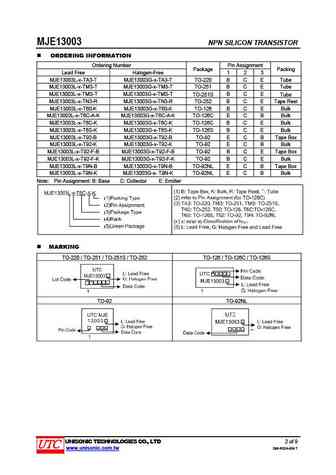

UNISONIC TECHNOLOGIES CO., LTD MJE13003 NPN SILICON TRANSISTOR NPN SILICON POWER TRANSISTOR DESCRIPTION These devices are designed for high-voltage, high-speed power switching inductive circuits where fall time is critical. They are particularly suited for 115 and 220V applications in switch mode. FEATURES * Reverse biased SOA with inductive load @ TC=100C * Inductive switching matrix 0.5 ~ 1.5 Amp, 25 and 100C Typical tC = 290ns @ 1A, 100C. * 700V blocking capability APPLICATIONS * Switching regulators, inverters * Motor controls * Solenoid/relay drivers * Deflection circuits www.unisonic.com.tw 1 of 9 Copyright 2014 Unisonic Technologies Co., Ltd QW-R204-004.T MJE13003 NPN SILICON TRANSISTOR ORDERING INFORMATION Ordering Number Pin Assignment Package Packing Lead Free Halogen-Free 1 2 3MJE13003L-x-TA3-T
