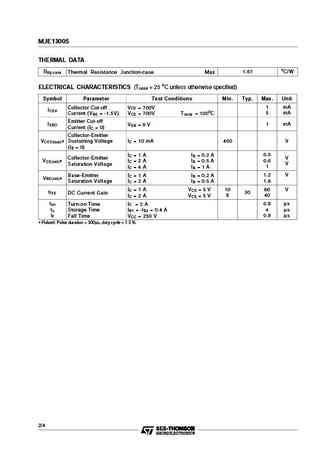

MJE13005 SILICON NPN SWITCHING TRANSISTOR SGS-THOMSON PREFERRED SALESTYPEDESCRIPTION The MJE13005 is a silicon multiepitaxial mesaNPN transistor in Jedec TO-220 plastic packageparticularly intended for switch-modeapplications.321TO-220INTERNAL SCHEMATIC DIAGRAMABSOLUTE MAXIMUM RATINGSSymbol Parameter Value UnitV 700 VCEV Collector-Emitter VoltageVCEO Collector-Emitter Voltage (IB = 0) 400 VVEBO Emitter-Base Voltage (IC = 0) 9VIC Collector Current 4AI 8ACM Collector Peak CurrentI 2AB Base CurrentIBM 4ABase Peak CurrentPtot Total Power Dissipation at Tcase 25 oC 75 WoTstg Storage Temperature -65 to +150 CoTj Max. Operating Junction Temperature 150 C1/4October 1995MJE13005THERMAL DATAoRthj-case Thermal Resistance Junction-case Max1.67 C/WELECTRICAL CHARACTERISTICS (T = 25 oC unless otherwise specified)case
