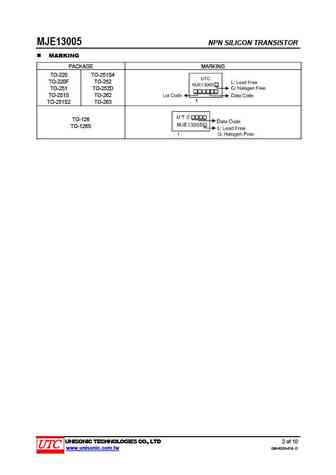

UNISONIC TECHNOLOGIES CO., LTD MJE13005 NPN SILICON TRANSISTOR NPN SILICON POWER TRANSISTORS DESCRIPTION These devices are designed for high-voltage, high-speed power switching inductive circuits where fall time is critical. They are particularly suited for 115 and 220 V SWITCHMODE. FEATURES * VCEO(SUS)= 400 V * Reverse bias SOA with inductive loads @ TC = 100 * Inductive switching matrix 2 to 4 Amp, 25 and 100 tC @ 3A, 100 is 180 ns (Typ) * 700V blocking capability * SOA and switching applications information APPLICATIONS * Switching regulators, inverters * Motor controls * Solenoid/Relay drivers * Deflection circuits ORDERING INFORMATION Ordering Number Pin Assignment Package Packing Lead Free Halogen Free 1 2 3 MJE13005L-x-TA3-T MJE13005G-x-TA3-T TO-220 B C E TubeMJE13005L-x-TF3-T MJE13005G-x-TF3-T TO-2
