View mje13005a datasheet:

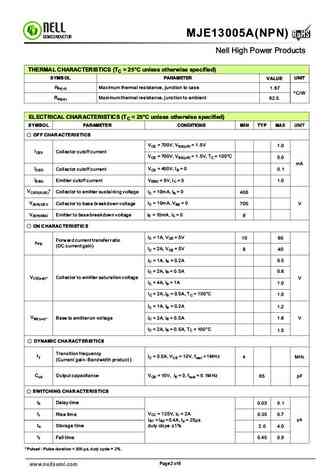

RoHS MJE13005A(NPN)RoHS SEMICONDUCTORNell High Power ProductsSwitchmode Series NPN Silicon Power Transistors(4A / 400V / 75W)FEATURESVCEO(SUS) 400V @ lC = 10 mA, lB = 0 VCE(sat) = 1.0V (Max.) @ lC = 4 A, lB = 1 ASwitching time - tf = 0.9 s (Max.) @ lC = 2 A 700V blocking capability123TO-220AB(MJE13005A) DESCRIPTION These devices are designed for high-voltage, high-speed power switching inductive circuits where fall time is critical. They are particularlyINTERNAL SCHEMATIC DIAGRAMsuited for 115 and 220V SWITCHMODE applications such as switching regulators,C (TAB)inverters, motor controls, solenoid/relay drivers and deflection circuits. (1)B(2)E(NPN)ABSOLUTE MAXIMUM RATINGS (TC = 25C unless otherwise specified)SYMBOL PARAMETER VALUE UNITVCEV Collector to base voltage (VBE = 0)700VCEO Collector to emitter v
