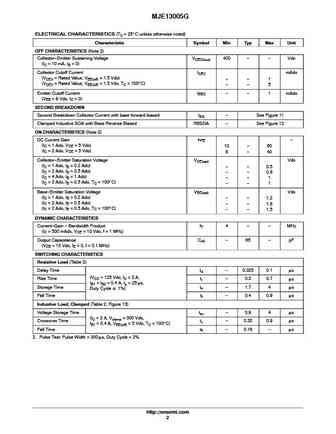

View mje13005g datasheet:
MJE13005GSWITCHMODEt SeriesNPN Silicon PowerTransistorsThese devices are designed for high-voltage, high-speed powerswitching inductive circuits where fall time is critical. They are http://onsemi.comparticularly suited for 115 and 220 V SWITCHMODE applicationssuch as Switching Regulators, Inverters, Motor Controls,4 AMPERESolenoid/Relay drivers and Deflection circuits.NPN SILICONFeaturesPOWER TRANSISTOR VCEO(sus) 400 V400 VOLTS - 75 WATTS Reverse Bias SOA with Inductive Loads @ TC = 100_C Inductive Switching Matrix 2 to 4 A, 25 and 100_C tc @ 3A,100_C is 180 ns (Typ) 700 V Blocking Capability SOA and Switching Applications InformationTO-220AB These Devices are Pb-Free and are RoHS Compliant*CASE 221A-09STYLE 1MAXIMUM RATINGSRating Symbol Value Unit12Collector-Emitter Voltage VCEO(sus) 400 Vdc3Collector-E
