View mje13007 datasheet:

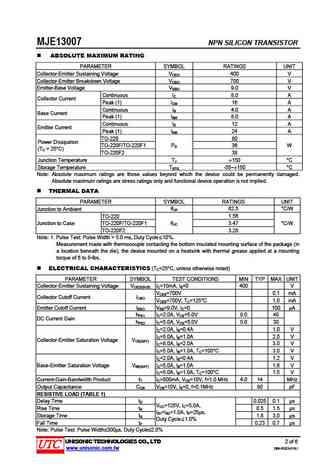

UNISONIC TECHNOLOGIES CO., LTD MJE13007 NPN SILICON TRANSISTOR NPN BIPOLAR POWER TRANSISTOR FOR SWITCHING POWER SUPPLY APPLICATIONS DESCRIPTION The UTC MJE13007 is designed for high-voltage, high-speed power switching inductive circuits where fall time is critical. It is particularly suited for 115 and 220 V switch mode applications. FEATURES * VCEO(SUS) 400V * 700V Blocking Capability ORDERING INFORMATION Ordering Number Pin Assignment Package Packing Lead Free Halogen Free 1 2 3 MJE13007L-TA3-T MJE13007G-TA3-T TO-220 B C E TubeMJE13007L-TF3-T MJE13007G-TF3-T TO-220F B C E TubeMJE13007L-TF1-T MJE13007G-TF1-T TO-220F1 B C E TubeMJE13007L-TF2-T MJE13007G-TF2-T TO-220F2 B C E TubeNote: Pin Assignment: B: BASE, C: COLLECTOR, E: EMITTER MJE13007L-TA3-T(1)T: Tube(2) TA3: TO-220, TF3: TO-220F, TF1: TO-220F1(1)Packing TypeTF2: T
