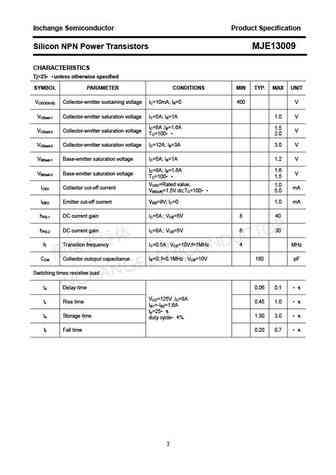

Inchange Semiconductor Product Specification Silicon NPN Power Transistors MJE13009 DESCRIPTION With TO-220C package High voltage ,high speed APPLICATIONS Particularly suited for 115V and 220V switchmode applications such as switching regulators,inverters ,motor controls,solenoid/ relay drivers and deflection circuits PINNING PIN DESCRIPTION1 Base Collector;connected to 2 mounting base 3 EmitterAbsolute maximum ratings(Tc=25) SYMBOL PARAMETER CONDITIONS VALUE UNITVCBO Collector-base voltage Open emitter 700 V VCEO Collector-emitter voltage Open base 400 V VEBO Emitter-base voltage Open collector 9 V IC Collector current (DC) 12 A ICM Collector current-Peak 24 AIE Emitter current 18 AIEM Emitter current-Peak 36 AIB Base current 6 AIBM Base current-Peak 12 ATa=25 2 PD Total power dissipation W TC=25 100 Tj
