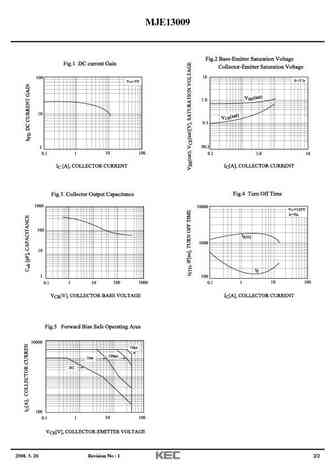

SEMICONDUCTOR MJE13009TECHNICAL DATA TRIPLE DIFFUSED NPN TRANSISTORSWITCHING REGULATOR APPLICATION.HIGH VOLTAGE SWITCHING APPLICATION.HIGH SPEED DC-DC CONVERTER APPLICATION.FEATURESExcellent Switching Times: ton=1.1 S(Max.), tf=0.7 S(Max.), at IC=8AHigh Collector Voltage : VCBO=700V.MAXIMUM RATING (Ta=25 )CHARACTERISTIC SYMBOL RATING UNITVCBOCollector-Base Voltage 700 VVCEOCollector-Emitter Voltage 400 VVEBOEmitter-Base Voltage 9 VICDC 12Collector Current AICPPulse 24IBBase Current 6 ACollector Power DissipationPC100 W(Tc=25 )TjJunction Temperature 150Tstg -55 150Storage Temperature RangeELECTRICAL CHARACTERISTICS (Ta=25 )CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNITIEBO VEB=9V, IC=0Emitter Cut-off Current - - 1 mAhFE(1) (Note) VCE=5V, IC=5A14 - 28DC Current GainhFE(2) VCE=5V, IC=8A6 - -IC=5A,
