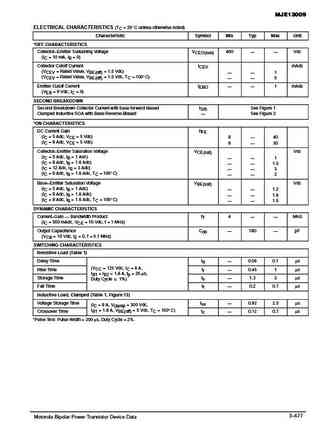

Order this documentMOTOROLAby MJE13009/DSEMICONDUCTOR TECHNICAL DATAMJE13009**Motorola Preferred DeviceDesigner's Data Sheet12 AMPERESWITCHMODE SeriesNPN SILICONPOWER TRANSISTORNPN Silicon Power Transistors400 VOLTSThe MJE13009 is designed for highvoltage, highspeed power switching inductive 100 WATTScircuits where fall time is critical. They are particularly suited for 115 and 220 Vswitchmode applications such as Switching Regulators, Inverters, Motor Controls,Solenoid/Relay drivers and Deflection circuits.SPECIFICATION FEATURES: VCEO(sus) 400 V and 300 V Reverse Bias SOA with Inductive Loads @ TC = 100_C Inductive Switching Matrix 3 to 12 Amp, 25 and 100_C. . . tc @ 8 A, 100_C is 120 ns (Typ). 700 V Blocking Capability SOA and Switching Applications Information.CASE 221A06
