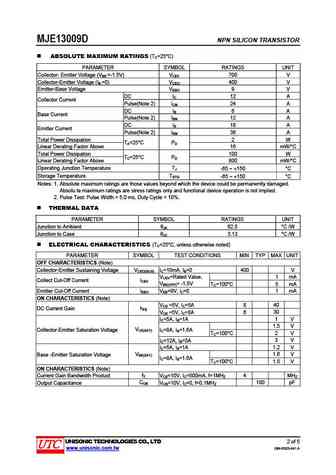

View mje13009d datasheet:

UNISONIC TECHNOLOGIES CO., LTD MJE13009D NPN SILICON TRANSISTOR HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR DESCRIPTION The UTC MJE13009D is a high voltage fast-switching NPN power transistor. It is characterized by high breakdown voltage,high current capability, high switching speed and high reliability. The UTC MJE13009D is intended to be used in a energy-saving lights electronic ballast, high frequency switching power supplies, high frequency power transforms or common power amplifiers, etc. FEATURES * High Breakdown Voltage * High Current Capability * High Switching Speed * High Reliability * RoHS-Compliant Product INTERNAL SCHEMATIC DIAGRAM C (2)B (1)E (3) ORDERING INFORMATION Ordering Number Pin Assignment Package Packing Lead Free Plating Halogen Free 1 2 3MJE13009DL-TA3-T MJE13009DG-TA3-T TO-220 B C E Tubewww.
