View mje340 mje350 datasheet:

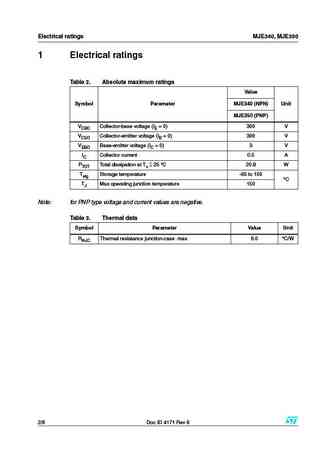

MJE340MJE350Complementary silicon power transistorsFeatures STMicroelectronics preferred salestypes Complementary NPN - PNP devicesApplications Linear and switching industrial equipment321DescriptionSOT-32The MJE340 is a silicon planar NPN transistor intended for use in medium power linear and switching applications. It is mounted in SOT-32.The complementary PNP type is MJE350.Figure 1. Internal schematic diagram(2)C(3)B (1)SC08810ETable 1. Device summaryOrder code Marking Polarity Package PackagingMJE340 MJE340 NPN SOT-32 TubeMJE350 MJE350 PNP SOT-32 TubeNovember 2011 Doc ID 4171 Rev 6 1/8www.st.com 8Electrical ratings MJE340, MJE3501 Electrical ratingsTable 2. Absolute maximum ratingsValueSymbol Parameter MJE340 (NPN) UnitMJE350 (PNP)VCBO Collector-base voltage (IE = 0) 300 VVCEO Collector-emitter
