View mmbt2222at datasheet:

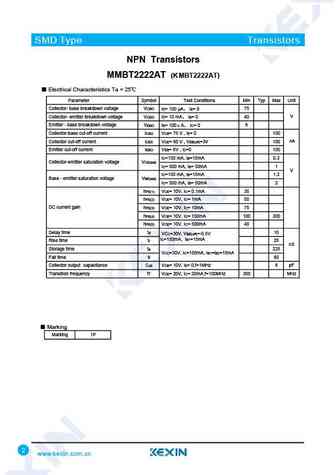

SMD Type TransistorsNPN TransistorsMMBT2222AT (KMBT2222AT)SOT-523 U nit: m m+0.11.6 -0.1+0.11.0 -0.1+0.050.2 -0.05 0.150.05 Features2 1 Small Package Complementary to MMBT2907AT30.30.05+0.10.5-0.11. Base2. Emitter3. Collecter Absolute Maximum Ratings Ta = 25Parameter Symbol Rating Unit Collector - Base Voltage VCBO 75 Collector - Emitter Voltage VCEO 40 V Emitter - Base Voltage VEBO 6 Collector Current - Continuous IC 600 mA Collector Power Dissipation PC 150 mW Thermal Resistance, Junction to Ambient RJA 833 C/W Junction Temperature TJ 150 Storage Temperature Range Tstg -55 to 1501www.kexin.com.cn0.55 (REF.)11+0. 50.80.11.6-0. 530. 60.11010+0.+0. 5870.-0.0. 5-0. 5SMD Type TransistorsNPN TransistorsMMBT2222AT (KMBT2222AT) Electrica
