View mmbt9013 datasheet:

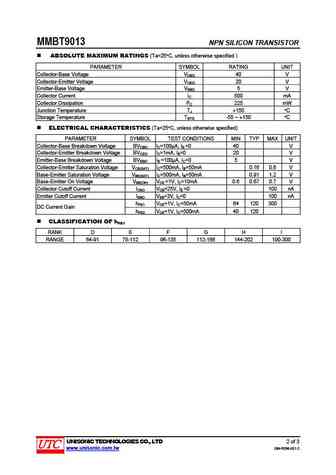

UNISONIC TECHNOLOGIES CO., LTD MMBT9013 NPN SILICON TRANSISTOR 1W OUTPUT AMPLIFIER OF POTABLE RADIOS IN CLASS B PUSH-PULL OPERATION FEATURES *High total Power Dissipation. (625mW) *High Collector Current. (500mA) *Excellent hFE linearity. *Complementary to UTC MMBT9012 ORDERING INFORMATION Ordering Number Pin Assignment Package Packing Normal Lead Free Halogen Free 1 2 3MMBT9013-x-AE3-R MMBT9013L-x-AE3-R MMBT9013G-x-AE3-R SOT-23 E B C Tape Reel MARKING www.unisonic.com.tw 1 of 3 Copyright 2011 Unisonic Technologies Co., Ltd QW-R206-021.C MMBT9013 NPN SILICON TRANSISTOR ABSOLUTE MAXIMUM RATINGS (Ta=25C, unless otherwise specified ) PARAMETER SYMBOL RATING UNITCollector-Base Voltage VCBO 40 VCollector-Emitter Voltage VCEO 20 VEmitter-Base Voltage VEBO 5 VCollector Current IC 500 mACollector Dissipation PC 225 mWJunction Te
