View mmdt3906 datasheet:

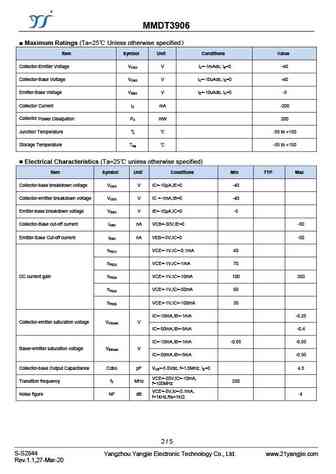

RoHS COMPLIANT MMDT3906 Dual PNP Small Signal Transistor Features Epoxy meets UL-94 V-0 flammability rating Surface mount package ideally Suited for Automatic Insertion PNP Mechanical Data ackage: SOT-363 P Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 Marking: K3N Equivalent circuit 1 / 5 S-S2844 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com Rev.1.1,27-Mar-20 MMDT3906 Maximum Ratings (Ta=25 Unless otherwise specified Item Symbol Unit Conditions Value Collector-Emitter Voltage VCEO V IC=-1mAdc, IB=0 -40 Collector-Base Voltage VCBO V IC=-10uAdc, IE=0 -40 Emitter-Base Voltage VEBO V IE=-10uAdc, IC=0 -5 Collector Current IC mA -200 Collector Power Dissipation PC mW 200 Junction Temperature Tj -55 to +150 Storage Temperature Tstg -55 to +
