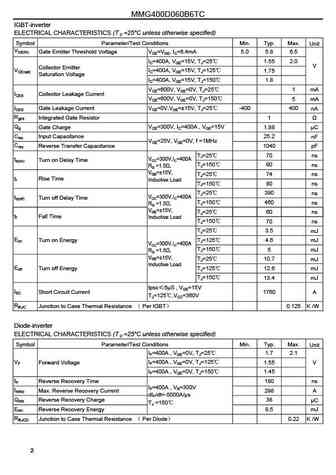

View mmg400d060b6tc datasheet:
MMG400D060B6TC600V 400A IGBT ModuleMay 2020 Preliminary RoHS CompliantPRODUCT FEATURES IGBT CHIP(Trench+Field Stop technology) High short circuit capability VCE(sat) with positive temperature coefficient Fast switching and short tail current Free wheeling diodes with fast and soft reverse recovery Low switching lossesAPPLICATIONS High frequency switching application Medical applications Motion/servo control UPS systemsIGBT-inverterABSOLUTE MAXIMUM RATINGS(T =25C unless otherwise specified)CSymbol Parameter/Test Conditions ValuesUnitVCES TJ=25 600Collector Emitter VoltageVVGESGate Emitter Voltage 20TC=25,TJmax=175 472ICDC Collector CurrentTC=60,TJmax=175 400 AICMRepetitive Peak Collector Current tp=1ms 800Ptot TC=25,TJmax=175 1200 WPower Dissipation Per IGBTDiode-inv
