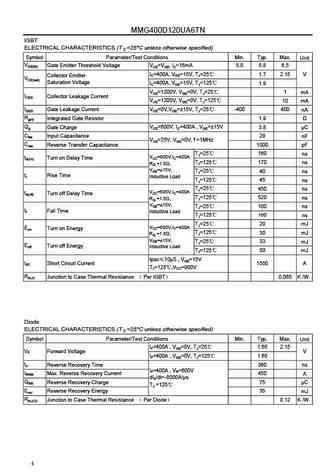

View mmg400d120ua6tn datasheet:
MMG400D120UA6TN1200V 400A IGBT ModuleFebruary 2017 Version 1 RoHS CompliantPRODUCT FEATURES IGBT3 CHIP(Trench+Field Stop technology) High short circuit capability,self limiting short circuit current VCE(sat) with positive temperature coefficient Fast switching and short tail current Free wheeling diodes with fast and soft reverse recovery Low switching lossesAPPLICATIONS High frequency switching application Medical applications Motion/servo control UPS systemsIGBTABSOLUTE MAXIMUM RATINGS(T =25C unless otherwise specified)CSymbol Parameter/Test Conditions ValuesUnitVCES TJ=25 1200Collector Emitter VoltageVVGESGate Emitter Voltage 20TC=25,TJmax=150 580ICDC Collector CurrentTC=80,TJmax=150 400 AICMRepetitive Peak Collector Current tp=1ms 800Ptot TC=25,TJmax=150 1925 WPow
