View mmg400k120u6tn datasheet:

mmg400k120u6tnmmg400k120u6tn

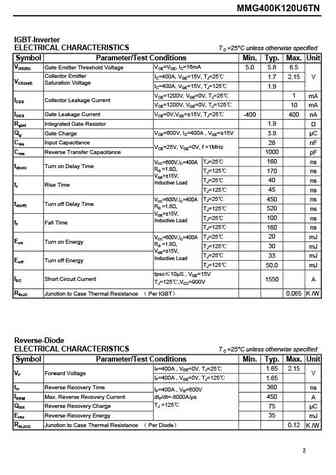

MMG400K120U6TN1200V 400A IGBT ModuleApril 2015 Version 01 RoHS CompliantPRODUCT FEATURES IGBT3 CHIP(Trench+Field Stop technology) High short circuit capability,self limiting short circuit current VCE(sat) with positive temperature coefficient Fast switching and short tail current Free wheeling diodes with fast and soft reverse recovery Low switching losses 10K Gate Protected Resistance InsideAPPLICATIONS High Power Converters Medical applications Motion/servo control UPS systems/Wind TurbinesIGBT-InverterABSOLUTE MAXIMUM RATINGS T =25C unless otherwise specifiedCSymbol Parameter/Test Conditions Values UnitVCES Collector Emitter Voltage TJ=25 1200VVGES Gate Emitter Voltage 20TC=25 580IC DC Collector CurrentTC=80 400 AICM Repetitive Peak Collector Current tp=1ms 800Ptot Power Dissipat
