View mpsa13 mpsa14 datasheet:

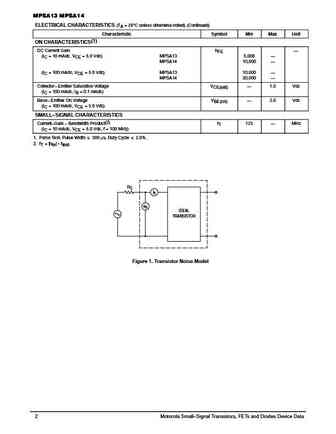

MOTOROLAOrder this documentSEMICONDUCTOR TECHNICAL DATAby MPSA13/DDarlington TransistorsMPSA13NPN SiliconMPSA14**Motorola Preferred DeviceCOLLECTOR 3BASE2EMITTER 1123MAXIMUM RATINGSCASE 2904, STYLE 1TO92 (TO226AA)Rating Symbol Value UnitCollectorEmitter Voltage VCES 30 VdcCollectorBase Voltage VCBO 30 VdcEmitterBase Voltage VEBO 10 VdcCollector Current Continuous IC 500 mAdcTotal Device Dissipation @ TA = 25C PD 625 mWDerate above 25C 5.0 mW/CTotal Device Dissipation @ TC = 25C PD 1.5 WattsDerate above 25C 12 mW/COperating and Storage Junction TJ, Tstg 55 to +150 CTemperature RangeTHERMAL CHARACTERISTICSCharacteristic Symbol Max UnitThermal Resistance, Junction to Ambient RqJA 200 C/WThermal Resistance, Junction to Case RqJC 83.3 C/WELECTRICAL CHARACTERISTICS (TA = 25C unle
