View ms18n50 datasheet:

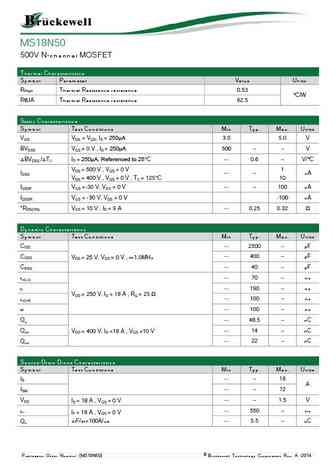

MS18N50 500V N-channel MOSFET Description The MS18N50 is a N-channel enhancement-mode MOSFET, providing the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost effectiveness. The TO-220 package is universally preferred for all commercial-industrial applications Features Originative New Design Very Low Intrinsic Capacitances Excellent Switching Characteristics 100% EAS Test Extended Safe Operating Area RoHS compliant package Application High current, High speed switching PFC (Power Factor Correction) Graphic symbol SMPS (Switched Mode Power Supplies) Packing & Order Information 50/Tube ; 1,000/Box MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Absolute Maximum Ratings Symbol Parameter Value Unit VDS Drain-Source Voltage 500 V 30 VGS Gate-S
