View pcp1402 datasheet:

pcp1402pcp1402

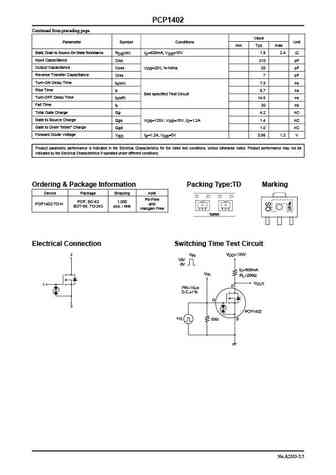

Ordering number : ENA2303A PCP1402 Power MOSFET http://onsemi.com 250V, 2.4, 1.2A, Single N-Channel Features On-resistance RDS(on)=1.8 (typ) Input Capacitance Ciss=210pF (typ) Halogen free compliance Specifications Absolute Maximum Ratings at Ta = 25C Parameter Symbol Conditions Value UnitDrain to Source Voltage VDSS 250 V Gate to Source Voltage VGSS 30 V Drain Current (DC) ID 1.2 A Drain Current (Pulse) IDP PW10s, duty cycle1% 4.8 ATc=25C 3.5 WPower Dissipation PD When mounted on ceramic substrate (600mm20.8mm) 1.5 WJunction Temperature Tj 150 C Storage Temperature Tstg 55 to +150 C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed,damage may occur and reliability may be affected.
