View pf5102 datasheet:

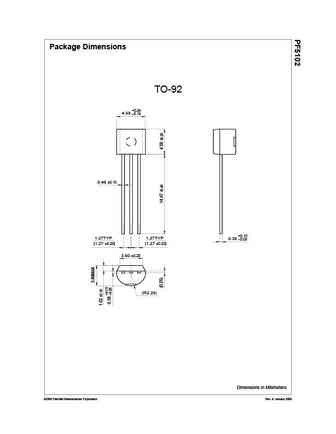

PF5102N-Channel Switch This device is designed for low level analog switching, sample and hold circuits and chopper stabized amplifiers. Sourced from process 51. See J111 for characteristics.TO-9211. Drain 2. Source 3. GateAbsolute Maximum Ratings * TA=25C unless otherwise notedSymbol Parameter Value UnitsVDG Drain-Gate Voltage 40 VVGS Gate-Source Voltage -40 VIGF Forward Gate Current 50 ATJ, TSTG Operating and Storage Junction Temperature Range -55 ~ +150 C* These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.NOTES:1. These ratings are based on a maximum junction temperature of 150 degrees C.2. These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.Electrical Characteristics TA=25C unless otherwise notedS
