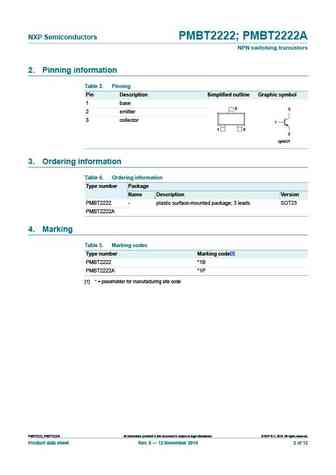

PMBT2222; PMBT2222ANPN switching transistorsRev. 6 12 November 2010 Product data sheet1. Product profile1.1 General descriptionNPN switching transistors in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package. Table 1. Product overviewType number Package PNP complementNXP JEDECPMBT2222 SOT23 TO-236AB PMBT2907PMBT2222A PMBT2907A1.2 Features and benefits High current (max. 600 mA) Low voltage (max. 40 V)1.3 Applications Switching and linear amplification1.4 Quick reference dataTable 2. Quick reference dataSymbol Parameter Conditions Min Typ Max UnitVCEO collector-emitter voltage open basePMBT2222 - - 30 VPMBT2222A - - 40 VIC collector current - - 600 mA[1]hFE DC current gain VCE =10V; 100 - 300IC = 150 mA[1]PMBT2222 VCE =10V; 30 - -IC = 500 mA[1]PMBT2222A VCE =10V; 40 - -IC = 500 mA[1] Pulse test: tp
