pmbt2222ampmbt2222am

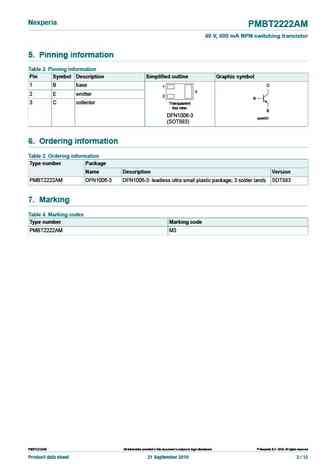

PMBT2222AM40 V, 600 mA NPN switching transistor21 September 2018 Product data sheet1. General descriptionNPN switching transistor in an ultra small DFN1006-3 (SOT883) leadless Surface-Mounted Device(SMD) plastic package.PNP complement: PMBT2907AM2. Features and benefits High current (max. 600 mA) Low voltage (max. 40V) Leadless ultra small SMD plastic package Low package height of 0.50 mm Power dissipation comparable to SOT233. Applications Switching and linear applications Mobile applications4. Quick reference dataTable 1. Quick reference dataSymbol Parameter Conditions Min Typ Max UnitVCEO collector-emitter open base - - 40 VvoltageIC collector current - - 600 mAICM peak collector current single pulse; tp 1 ms - - 800 mAhFE DC current gain VCE = 10 V; IC = 150 mA [1] 100 - 300 VCE = 10 V; IC = 500 mA [1] 40 - -
