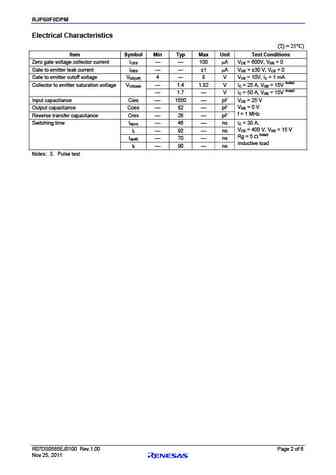

Preliminary Datasheet RJP60F0DPM R07DS0585EJ0100600 V - 25 A - IGBT Rev.1.00High Speed Power Switching Nov 25, 2011Features Low collector to emitter saturation voltage VCE(sat) = 1.4 V typ. (at IC = 25 A, VGE = 15 V, Ta = 25C) Trench gate and thin wafer technology High speed switching Outline RENESAS Package code: PRSS0003ZA-A(Package name: TO-3PFM)C1. GateG 2. Collector3. EmitterE123Absolute Maximum Ratings (Tc = 25C) Item Symbol Ratings UnitCollector to emitter voltage VCES 600 VGate to emitter voltage VGES 30 VCollector current Tc = 25 C IC Note1 50 ATc = 100C IC Note1 25 ACollector peak current ic(peak) Note1 100 ACollector dissipation PC 40 WJunction to case thermal impedance j-c 3.125 C/WChannel temperature Tj 150 C Storage temperature Tstg 55 to +150 C Notes: 1. Pulse width
