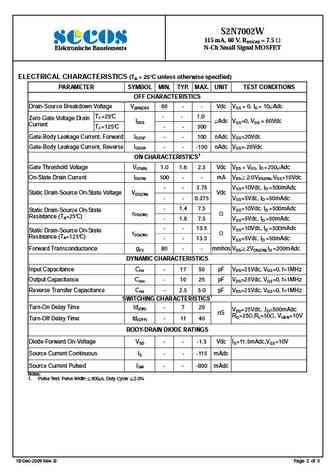

S2N7002W 115 mA, 60 V, RDS(ON) = 7.5 N-Ch Small Signal MOSFET Elektronische Bauelemente RoHS Compliant Product A suffix of -C specifies halogen & lead-free FEATURES SOT-323 Low on-resistance Low gate threshold voltage Low input capacitance Fast switching speed Low input/output leakage Ultra-small surface mount package AL33Top View C B11 22K EDPACKAGE INFORMATION H JF G Drain 3 Drain Drain 1 3 3 Gate 6C 72 2 1 1 2 2 Source Millimeter Millimeter Gate Gate Source Source REF. REF. Min. Max. Min. Max. X=Date Code A 1.80 2.20 G 0.00 0.10 B 2.00 2.40 H 0.425 REF. C 1.15 1.35 J 0.10 0.25 D 0.80 1.00 K - - E 1.20 1.40 L 0.650 TYP. F 0.30 0.40 ABSOLUTE MAXIMUM RATINGS PARAMETER SYMBOL RATINGS UNIT Drain-Source Voltage VDDS 60 Vdc Drain-Gate Voltage(RGS=1.0M
