View s8550-l s8550-h datasheet:

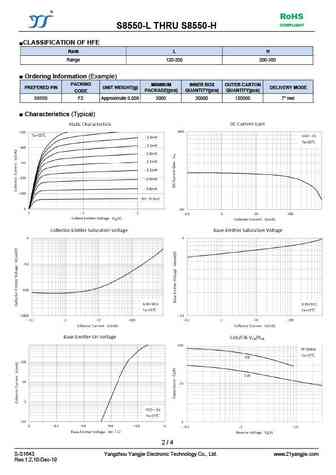

s8550-l_s8550-hs8550-l_s8550-h

RoHS RoHSCOMPLIANT COMPLIANTS8550-L THRU S8550-H PNP General Purpose Amplifier Features Epoxy meets UL-94 V-0 flammability rating Halogen free available upon request by adding suffix HF Moisture Sensitivity Level 1 Marking: S8550-L 2TYL S8550-H 2TYMaximum Ratings (Ta=25 unless otherwise noted) Item Symbol Unit Conditions Value Collector-Base Voltage VCBO V IC=-100uAdc, IE=0 -40 Collector-Emitter Voltage VCEO V IC=-100uAdc, IB=0 -25 Emitter-Base Voltage VEBO V IE=-100uAdc, IC=0 -5 Collector Current IC mA -500 Collector Power Dissipation PC mW 300 Operation Junction Temperature Tj 150 Storage Temperature Tstg -55 to +150 Electrical Characteristics (Ta=25 unless otherwise noted) Item Symbol Unit Conditions Min Typ Max Collector-base breakdown voltage VCBO V IC=-100uA,IE=0 -40 Collector-emit
