View s8550 datasheet:

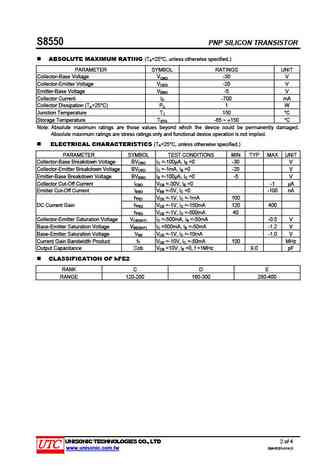

UNISONIC TECHNOLOGIES CO., LTD S8550 PNP SILICON TRANSISTOR LOW VOLTAGE HIGH CURRENT SMALL SIGNAL PNP TRANSISTOR DESCRIPTION The UTC S8550 is a low voltage high current small signal PNP 1transistor, designed for Class B push-pull audio amplifier and TO-92general purpose applications. FEATURES * Collector current up to 700mA * Collector-Emitter voltage up to 20 V * Complementary to UTC S8050 ORDERING INFORMATION Order Number Pin Assignment Package Packing Lead Free Plating Halogen Free 1 2 3 S8550L-x-T92-B S8550G-x-T92-B TO-92 E B C Tape BoxS8550L-x-T92-K S8550G-x-T92-K TO-92 E B C Bulkwww.unisonic.com.tw 1 of 4 Copyright 2013 Unisonic Technologies Co., Ltd QW-R201-013. D S8550 PNP SILICON TRANSISTOR ABSOLUTE MAXIMUM RATING (TA=25C, unless otherwise specified.) PARAMETER SYMBOL RATINGS UNITCollector-Base Voltage VC
