View s9018 datasheet:

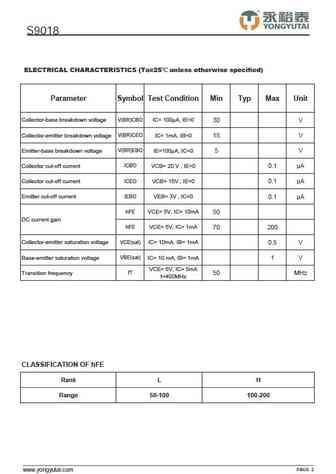

S9018TRANSI STOR (NPN)MARKING: Equivalent Circuit:SOT-231.BASE2.EMITTER3.COLLECTORFEATURES: AM/FM Amplifier, Local Oscillator of FM/VHF Tuner High Current Gain Bandwidth ProductMAXIMUM RATINGS (Ta=25 unless otherwise notedParameter Symbol Value UnitCollector-Base Voltage VCBO 30 VCollector-Emitter Voltage VCEO 15 VEmitter-Base Voltage VEBO 5 VCollector Current -Continuous IC 50 mACollector Current -Puised ICM 300 mACollector Power Dissipation PC 200 mWThermal Resistance From Junction To Ambient RJA 625 /WJunction Temperature Tj 150 Storage Temperature Tstg -55+150 PAGE 1www.yongyutai.com S9018 ELECTRICAL CHARACTERISTICS (Ta=25 unless otherwise specified)Parameter Symbol Test Condition Min Typ Max UnitCollector-base breakdown voltage V(BR)CBO IC= 100A, IE=0 30 VCollector-emitter breakdown voltage V(BR)CE
