View smirf16n65 datasheet:

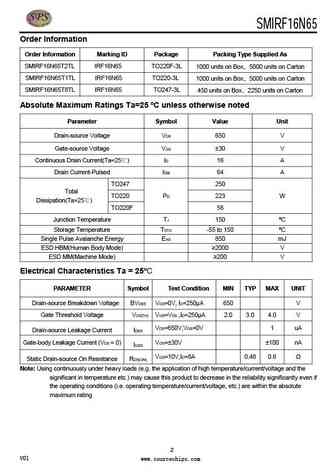

SMIRF16N6530V /36A Single N Power MOSFET N-Channel Enhancement Mode Power MOSFETDescription ID 16A SMIRF12N65 is an N-channel enhancement mode power MOS field effect transistor. The improved VDSS 650V planar stripe cell and the improved guard ring terminal have been especially tailored to minimize Rdson max 0.6(VGS=10V, ID=8A) on-state resistance, provide superior switching performance, and withstand high energy pulse in Qg 54nC the avalanche and commutation mode. These devices are widely used in AC-DC power suppliers, DCDC converters and H-bridge PWM motor drivers. General Features 16A,650V,RDS(on)(typ.)= 0.48ohm@VGS=10V Low Gate charge Low Crss Fast Switching Improved dv/dt Capability Application Power switching application Hard switched and high frequency circuits Uninterruptible power sup
