View sps8550 datasheet:

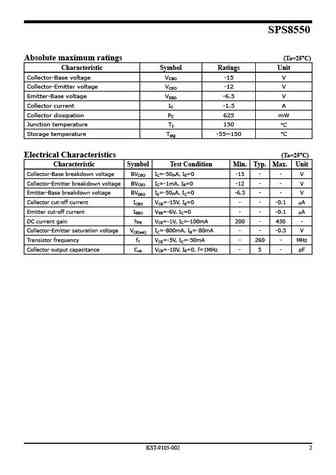

SPS8550Semiconductor Semiconductor PNP Silicon TransistorFeatures Suitable for low voltage large current drivers High DC current gain and large current capability Complementary pair with SPS8050 Ordering Information Type NO. Marking Package Code SPS8550 SPS8550 TO-92 Outline Dimensions unit : mm 1 2 3 PIN Connections 1. Emitter 2. Base 3. Collector KST-9105-002 1 SPS8550Absolute maximum ratings (Ta=25C) Characteristic Symbol Ratings UnitCollector-Base voltage VCBO -15 VCollector-Emitter voltage VCEO -12 VEmitter-Base voltage VEBO -6.5 VCollector current IC -1.5 ACollector dissipation PC 625 mWJunction temperature TJ 150 C Storage temperature Tstg -55~150 C Electrical Characteristics (Ta=25C) Characteristic Symbol Test Condition Min. Typ. Max. UnitCollector-Base breakdown voltage BVCBO IC=-50A, IE=0
