View srm7n65e1 datasheet:

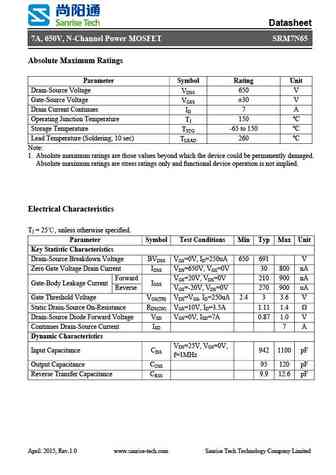

Datasheet 7A, 650V, N-Channel Power MOSFET SRM7N65General Description Symbol The Sanrise SRM7N65 is a high voltage power MOSFET, which has better characteristics, such as fast switching time, low gate charge, low on-state resistance. Sanrise SRM7N65 break down voltage rating is 650V and it has a high rugged avalanche characteristics. This power MOSFET is usually used at high speed switching applications in power supplies, high power LED lightings, TV power, Charger Figure 1 Symbol of SRM7N65 and Adapter, high efficient DC/DC converters and bridge circuits. Package Type The SRM7N65 is available in TO-251, TO-252, TO-220F and TO-220C packages. Features TO-251 TO-252 RDS(ON) =1.11 @ VGS = 10V. Fast switching capability Improved dv/dt capability, high ruggedness Application High Power LED Lighting TO-220F TO-220C C
